AccuCreaser
AccuCreaser

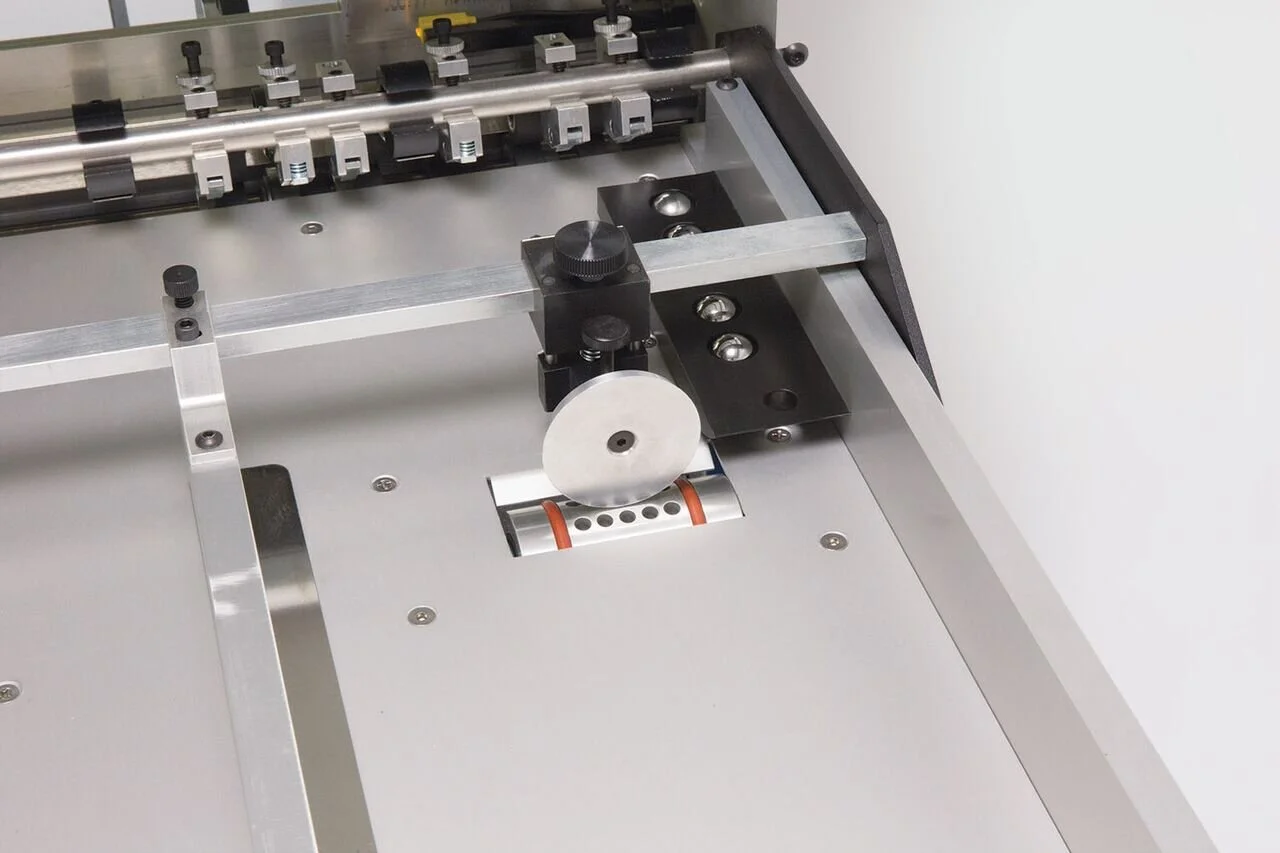

The COUNT™ AccuCreaser Air provides fast, consistent quality creasing and perforating with a variety of features that make it top of its class. Get super accurate CAM actuated compression creasing with rotary perf/score capabilities, including micro-perf options (up to four at a time), and automated distance recognition to support auto set-ups for a variety of creases, even perfect bind set-up. The AccuCreaser Air utilizes a bottom vacuum paper feed with a built-in register guide to ensure accuracy with every sheet.
Features
Provides modes for creasing, perforating or feeding.
Bottom vacuum feed with sheet spacing control.
CAM actuated compression creasing ensures maximum crease accuracy.
Automated distance recognition allows auto setups for your most common creases and corresponding folds, including perfect bind.
Perform up to 4 perfs at a time (including micro perf).
Includes a sheet counter (for both batch and total sheet count).
Two-sided die creasing rod accommodates for heavier stock–simply remove and flip over to change from narrow to wide crease.
User-friendly touch screen for easy set up and control of the machine.
Specifications
Model Number ACTREG
Paper Feed Vacuum
Max Crease Speed 5,500
Max Perf/Score Speed 12,000
Paper Weight Range 60 - 350
Max Sheet Size 24.0 L x 18.0 W in (61.0 x 45.7 cm)
Min Sheet Size 4.5 L x 6.0 W in (11.4 x 15.2 cm)
Max Crease Locations per Sheet 12
Max Perf/Score Locations per sheet 4
Paper Fold Options Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Roll Fold, Gate Fold, Double Gate Fold, Double Parallel Fold, Perfect Bind: No Hinge, Single Hinge, Double Hinge
Scoring Standard
Touch Screen Controls True
Product Dimensions 56.0" L x 30.0" W x 44.0" H
Product Weight 300 lbs (136 kg)
Electrical 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A
