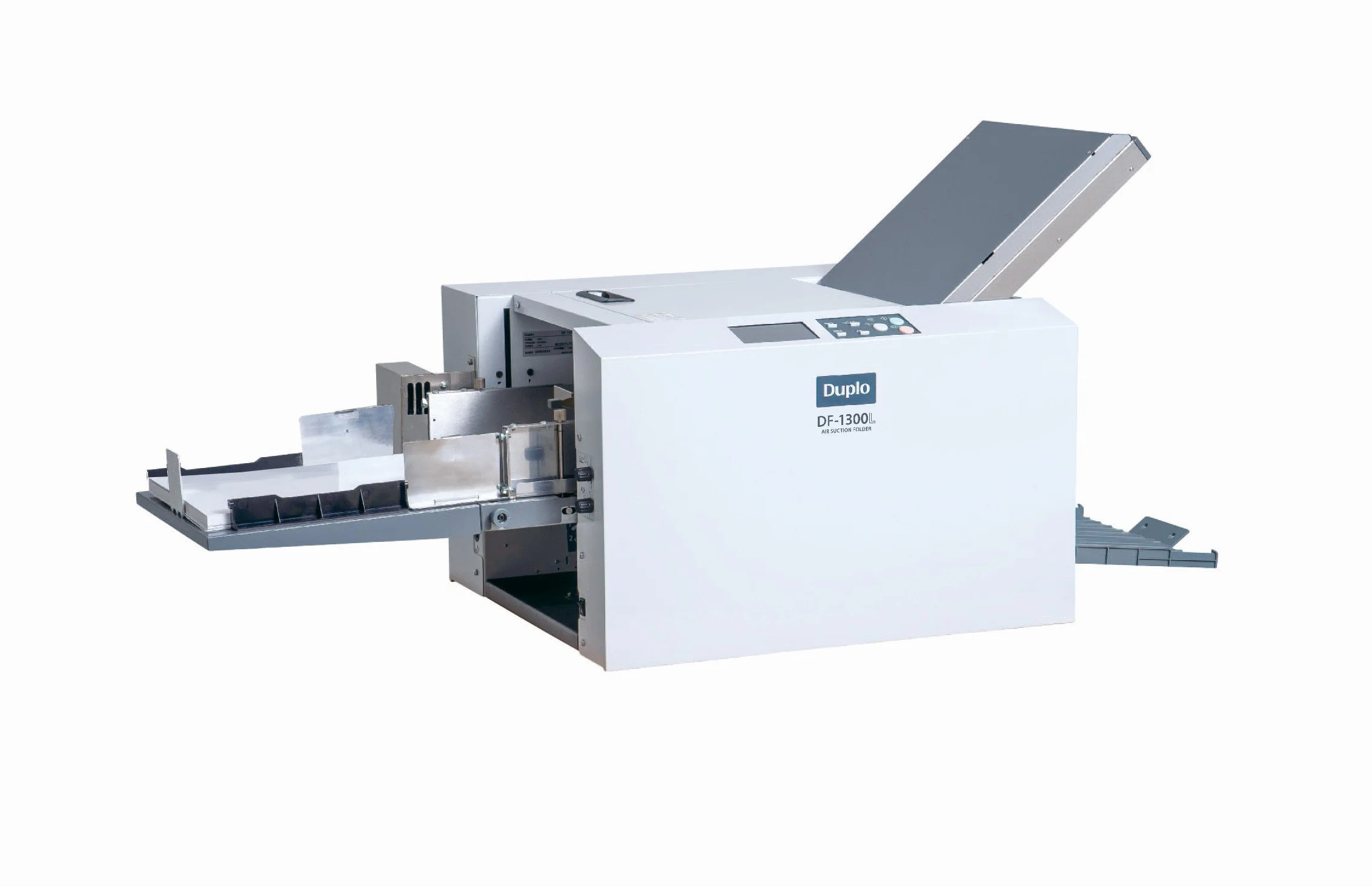

Duplo DF-1300L
Duplo DF-1300L
Quickly fold office documents printed off your digital press with the compact DF-1300L by its side. The DF-1300L features high speed folding up to 310 sheets per minute and can process sheets up to 25.5″ in length. The air suction feed system with side air makes it possible to feed coated sheets as well as bond, NCR, and offset. It can also perform cross folds by reprocessing single folded sheets and folding them in a second direction.
Features
Pre-programmed with 6 fold styles
Automatic paper size detection and fold plate setting
Optical and ultrasonic sensors for double feed detection
30-job memory for most common jobs
Key Features
High speed folding up to 310 sheets per minute
4.3" color LCD touchpanel for easy operation
Six preprogrammed fold styles
30 job memories for custom folds
Automatic paper size detection and fold plate setting
Optical and ultrasonic sensors for double feed detection
Built-in side air for feeding heavy stock and large paper sizes
Sound absorbers for quiet operation
625-sheet feed tray capacity
Specifications
Speed Up to 310 sheets per minute
Input Paper Size 4.73” x 7.2” - 12.2” x 25.5”
Paper Weight Uncoated paper: 52.3-157gsm Coated paper: 73.3-157gsm
Feeder Capacity Up to 625 sheets/64gsm
Paper Quality Bond, NCR, offset, cover stock, coated
Folding Modes Single, double, half accordion, letter, accordion, gate, custom
Custom Fold Memory 30
Sound Level 74.3 db
