DFL-500
DFL-500

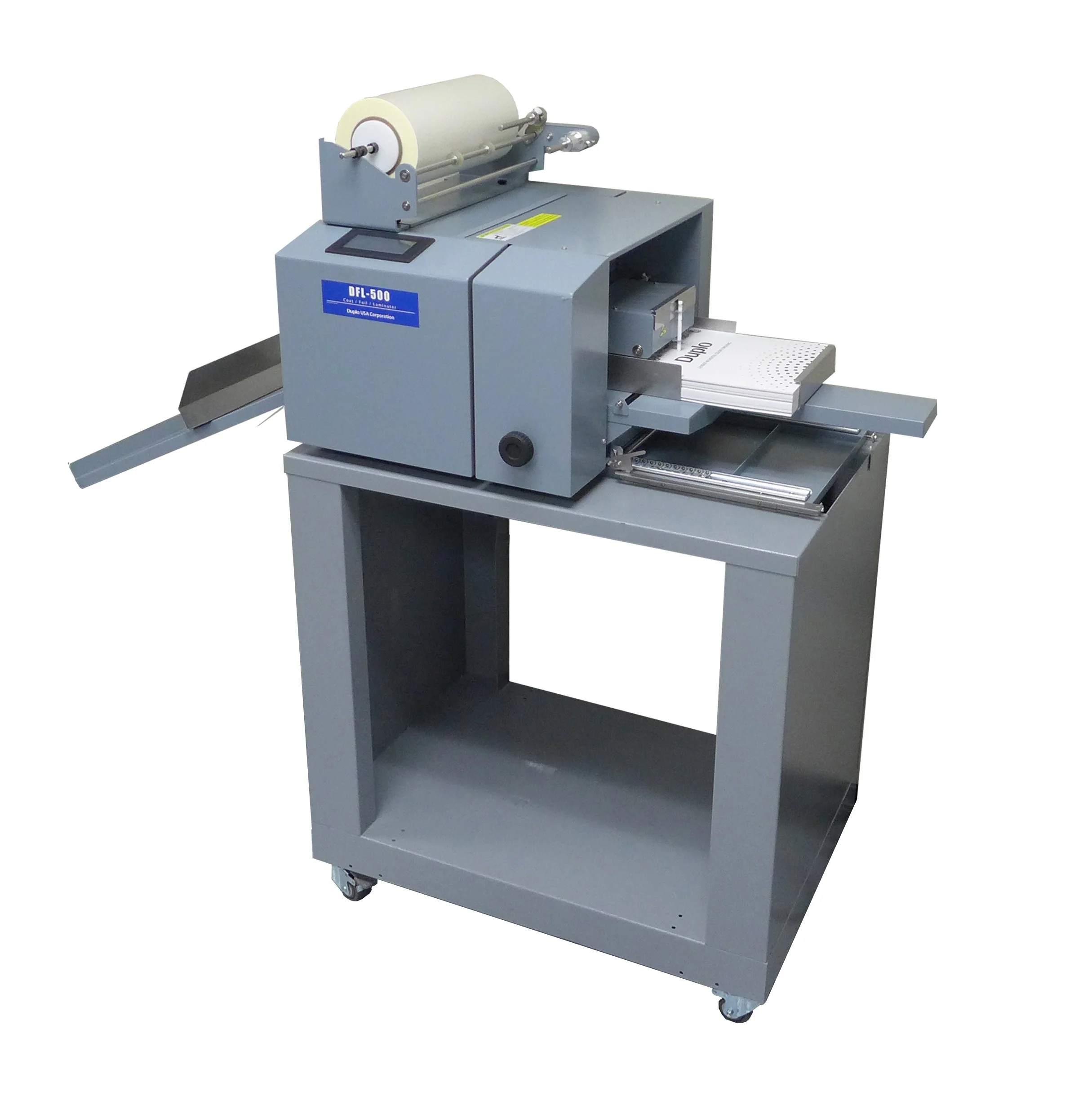

The DFL-500 delivers a multi-purpose solution for print embellishment with the capability to dry coat, foil, and laminate in a single machine. Compact and easy to use, the DFL-500 utilizes a ceramic thermal roller and a heat control system to precisely apply the desired film on top of the sheet.
For gloss dry coating, the DFL-500 utilizes a specially-formulated film that applies full coverage on a sheet of a paper. When the film runs through the heat roller, the adhesive is melted and applied to sheet.
Without the need of investing in individual foil stamp dies, the DFL-500 uses a unique adhesive foil that sticks onto the toner used in most presses.
The DFL-500 comes standard with an automatic side-to-side flying knife separator system for precise flush cutting of laminated sheets. It also features a dust removing and de-curling system commonly seen in more expensive laminators.
Key Features
3-in-1 solution
Auto film slitting and cutting system
Two-piece design for easy film setup and removal
Automatic air suction feed system
Handles up to 13" width sheets
Specifications
Feed System Automatic, Air Suction System
Coating Mechanism Heat Roller System (194-320F)
Paper Size Laminate: 8.3” x 11.7” - 13” x 24” Foil: 5.8” x 8.3” - 13” x 24”
Paper Weight 110-400 gsm
Speed Up to 15ppm
Dimensions 52” (W) x 22” (D) x 17” (H)
Net Weight 137 lbs.
