600C Booklet System
600C Booklet System

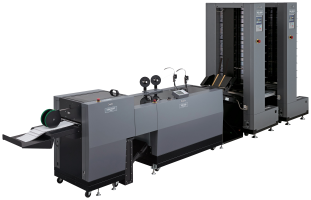

The Duplo 600C Booklet System combines the DSC-10/20 Suction Collator with the DBM-600 Bookletmaker, delivering a high volume collating and bookletmaking system for print providers. Utilizing Duplo's proven suction feed system, the DSC-10/20 allows for gentle handling of a wide range of applications not possible with friction feed collators. Each bin comes equipped with two adjustable fans for consistent and accurate feeding while a large pickup area of the belt suction feed system ensures that even slick coated, curled, and high static digital documents are fed consistently.
With the DBM-600 Bookletmaker, jobs can be saddle, side or corner-stitched and the automatic set up feature allows users to go from 14" x 20" to CD-size book jobs without any manual adjustments. The 600C Booklet System produces up to 4,100 booklets per hour.
Key Features
High production collating and bookletmaking
Configures up to two DSC-10/20 Collators
Produces up to 4,100 booklets per hour
Collates up to 7,200 sets per hour
Creates 30-sheet books
Optional three-knife trimming capabilities and 2-up processing with the DKT-200 Two-Knife Trimmer
Specifications
Paper Size: Saddle Stitch & Fold 4.13” x 6.7” - 14.33” x 25.19”
Paper Size: Side/Corner Stitch
Paper Type Bond, NCR, coated
Paper Capacity (Stitch & Fold) 30 sheets, 80 gsm
Speed Up to 4,100 sets per hour
Number of Stitching Heads 2 standard, 4 stitch kit optional
Programmable Memory 20
