FL 520Z


FL 520Z

$0.00

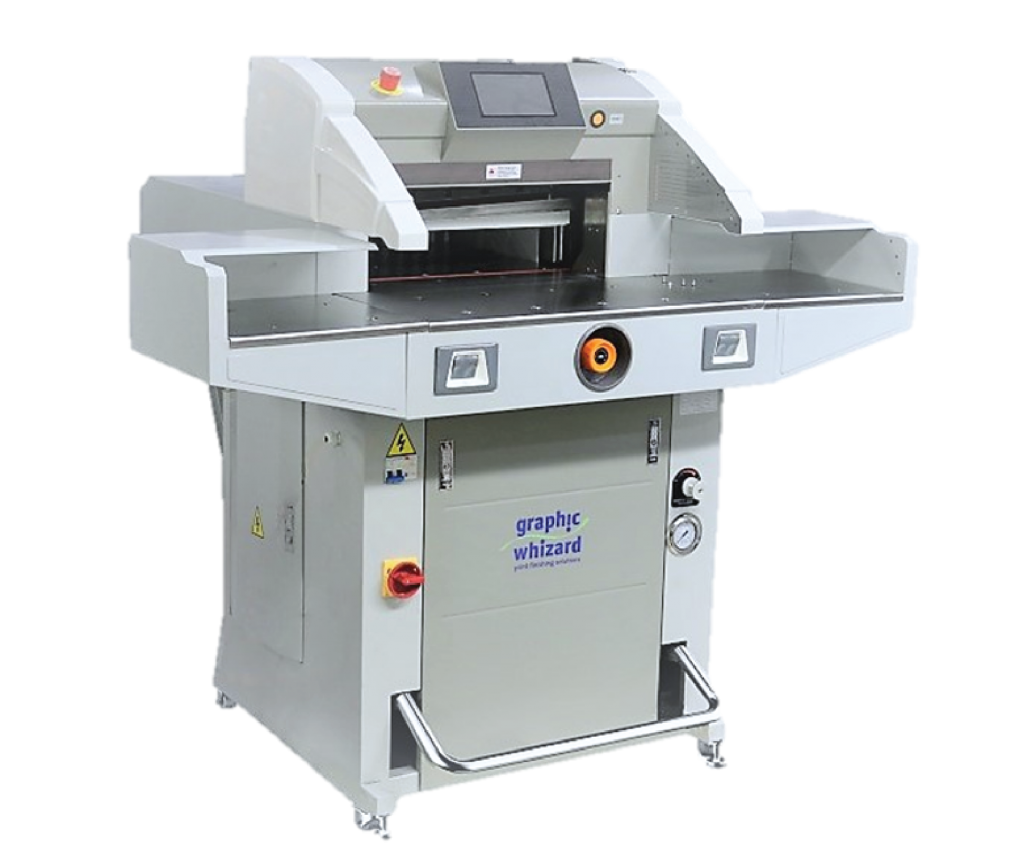

Introducing the Graphic Whizard FL 520Z Paper Cutter. This heavy duty 20.5” hydraulic paper cutter was designed both stylish and well featured. The FL 520Z comes standard with features like fully programmable easy to use 8″LCD Touchscreen display, safety light beams, laser cut line and side tables. Ball assist enables the user to easily maneuver larger stock on the table. The FL 520Z also has foot pedal operation for the clamp, knife latch, blade depth adjustment and emergency stop. The machine ships with the bed tilted down to facilitate positioning the machine on site and able to negotiate smaller doorways. Also available is the FL 670Z model, same great look and features with the maximum cutting width of 26.4”.

Add To Cart

Features

  • LONG STAINLESS STEEL WORKTABLE WITH SIDE TABLES

  • LASER LIGHT GUARD FOR SAFETY

  • 6″ LCD  TOUCHSCREEN DISPLAY WITH EASY TO USE PROGRAMMING

  • 80 JOB MEMORY

  • ADJUSTABLE CLAMP PRESSURE FOR DIFFERENT STOCKS

  • QUICK BLADE DEPTH ADJUSTMENT FROM OUTSIDE THE MACHINE

  • RED BEAM LASER CUT LINE FOR ACCURATE JOB SET UP

  • AUTO PAPER EJECT FOR EFFICIENCY

  • BLADE LATCH DEVICE TO PREVENT DESCENT IN CASE OF EMERGENCY

  • HIGH GRADE MULTI-USE CUT STICKS

  • SINGLE PHASE

  • BALL ASSIST FOR EASIER  MANEUVERING OF LARGER/HEAVIER STOCK ON TABLE

  • SHIPS WITH BED TILTED DOWN, ENABLES POSITIONING THROUGH SMALLER DOORWAYS

Specifications

  • Max Cutting Width 20.5”  (520mm)

  • Min Cutting Size behind the blade 0.787” (20mm)

  • Maximum Cutting Size behind the blade 20.5”  (520mm)

  • Working distance in front of the blade 18”

  • Max Thickness / Clamp Opening 3.35” (85mm)

  • Side Table Size (each) 13.5” x 13.75”

  • Programmable 80 Programs

  • Cutting Method Hydraulic

  • Clamping Method Hydraulic + pedal

  • Clamp Paper Program control

  • Backguage Power

  • Knife Latch √

  • Side Tables √

  • Safety Beams √

  • Laser Cut Line √

  • Display LCD touchscreen

  • Power 208-230v, 50/60Hz, 20A  Single Phase

  • Net Machine Weight 992 Lbs (450 Kg)

  • Machine Size  (L x W x H) 55.11 x 57.9 x 58.267 in. / 139.98 x 147.07 x 147.998 cm

  • Minimum machine Size without Side Tables 55.11” x 31.49” x 58.27 in / 139.98 x 79.98 x 147.998 cm
